How do you benefit from the TS Implant System?
The TS Implant System is one of the most widely used implants among dental professionals worldwide. Designed for optimal primary stability and enhanced osseointegration, this bone-level implant provides predictable outcomes in a wide range of clinical cases.
1. High Primary Stability & Easy Insertion
Self-tapping, dual-thread design and optimized body shape ensure secure, effortless placement.
2. Fair & Accessible
High-volume production enables attractive pricing – without compromising on quality.
3. Fast Osseointegration
Clinically proven SA surface accelerates bone healing and shortens healing time.
4. Prosthetic Versatility
Comprehensive prosthetic solutions for both aesthetic and functional restorations.
5. Excellent Long-Term Results
Platform switching helps preserve crestal bone and supports long-term success.
6. Broad Range of Indications
Available in multiple diameters and lengths for minimally invasive and versatile treatments.

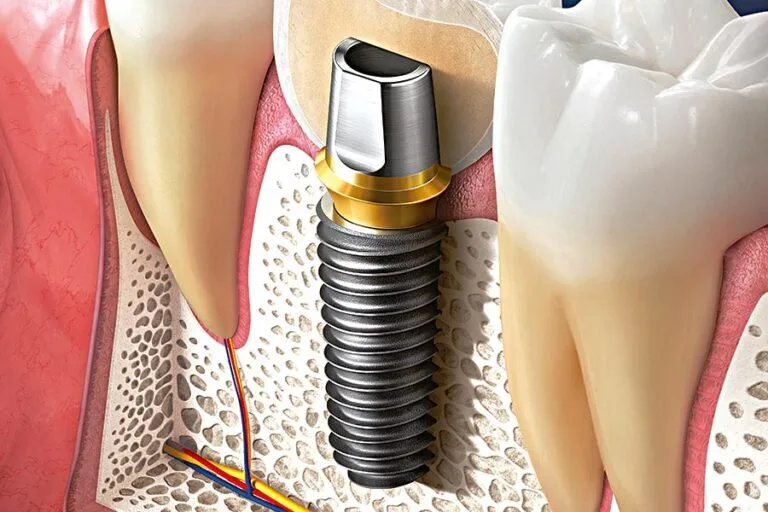

Innovative Design for Superior Performance
Self-Tapping & Dual-Thread Structure
The self-tapping, dual-thread design of the TS Implant enables quick and precise placement while minimizing insertion torque. Its optimized macro and microstructure promote bone integration and long-term stability.

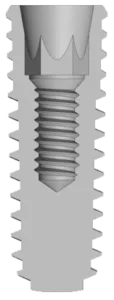

Morse Taper Connection – Secure & Bacteria-Free
The 11° morse taper connection ensures an exceptionally tight fit, preventing micro-movements and bacterial infiltration. Platform switching helps maintain soft and hard tissue stability, contributing to long-term implant success.
SA Surface for Faster Healing
The Sand-blasted & Acid-etched (SA) surface increases surface area by 45% compared to RBM surfaces. Bone healing is accelerated by 20%, leading to reduced healing times.
- Optimized surface structure: combination of a macrostructure and a microstructure
- Fast cell response and bone healing: 20% faster than conventional RBM surfaces (Resorbable Blast Media)
- Early loading possible as early as 6 weeks after implantation
- Optimum surface roughness: Ra 2.5~3.0 µm.
Specifications & Indications
Mini
Regular
2 platform connection sizes for all diameters
The TS implants have two platforms which serve for the abutment connection.
- Mini: Implants with a Diameter of Ø3,0 mm & Ø3,5 mm
- Regular: Implants from a diameter of Ø4.0 mm
A platform switch is possible between mini implants with mini abutments or between regular implants with regular abutments. Please simply pay attention to the corresponding color coding.
Body shape can be selected according to bone quality and the patient's diagnosis
» Implants with a diameter of 4.5mm or greater are recommended for the posterior region with a single case
II
(Straight Body)
- Straight Body for easy adjustment of placement depth
- Less sensitivity to bone quality and Drill diameter
Torque: ≤ 40 Ncm
III
(1.5º Taper body)
- 1.5º Taper body that is advantageous for obtaining primary stability
- Ideal for Immediate & Early loading
Torque: ≤ 40 Ncm
IV
(6º Taper body)
- Implant for maxillary sinus and Soft bone only
- Even if the bone quality is weak, obtain strong initial stability
Torque: ≤ 40 Ncm
» For TSIV implants, a reduction of the speed to 15 RPM is recommended.
Color Coding of TS Implants
- Our TS implants are available in a variety of diameters & lengths to optimally cover all indications
- The outer packaging and labels provide valuable information about the enclosed product before opening: expiration date of sterilization, implant length & diameter, article & LOT number
| Ø3,0 | Ø3,5 |
|
|←
Mini
→|
|
|
| Ø4,0 | Ø4,5 | Ø5,0 | Ø5,5 | Ø6,0 | Ø7,0 |
|
|←
Regular
→|
|
|||||
Testimonials
Their innovations and solutions such as the Cas kit and the Esset kit are game changers. The support from the company is friendly and instant and we do all feel like family.
Dr. Jatin Desai
Gipsy Lane (UK)
I found The CAS and LAS kit a predictable and safe method for crestal and lateral sinus lifts and have been teaching how to use these kits for over 10 years.
Dr. Stratos Efstratiou
Together Dental (UK)
The LAS and CAS kits have revolutionised sinus lifts. In a nutshell Osstem’s products have transformed my day to day practice.
Dr. Shirin Parsno
Nova Dental Care (UK)
Frequently Asked Questions (FAQ)
Is the TS Implant suitable for immediate loading?
✔ Yes, clinical studies confirm a high success rate for early loading, particularly in cases with sufficient primary stability.
What prosthetic options are available?
The system includes a comprehensive range of prosthetics, including CAD/CAM custom abutments, multi-unit solutions, and esthetic zirconia options.
What makes the TS Implant different from other Bone Level Implants?
The self-tapping feature, dual-thread structure, and advanced SA surface ensure higher initial stability and faster bone healing.
